SIC ceramic products can be customized SIC reflectors

Short Description:

Silicon carbide is a new type of ceramics with high cost performance and excellent material properties. Due to features like high strength and hardness, high temperature resistance, great thermal conductivity and chemical corrosion resistance, Silicon Carbide can almost withstand all chemical medium. Therefore, SiC are widely used in oil mining, chemical, machinery and airspace, even nuclear energy and the military have their special demands on SIC. Some normal application we can offer are seal rings for pump, valve and protective armor etc.

We are able to design and manufacture according to your specific dimensions with good quality and reasonable deliver time.


Product Detail

Product Tags

Description

The hardness of silicon carbide ceramic structural parts is second only to diamond, Vickers hardness 2500; As a super hard and brittle material, it is very difficult to process silicon carbide structural parts. Wei Tai Energy Technology adopts CNC machining center. In the inner and outer circular grinding process of silicon carbide ceramic structural parts, diameter tolerance can be controlled within ±0.005mm and roundness ±0.005mm. The precision machined silicon carbide ceramic structure has smooth surface, no burr, no porosity, no crack, roughness of Ra0.1μm.

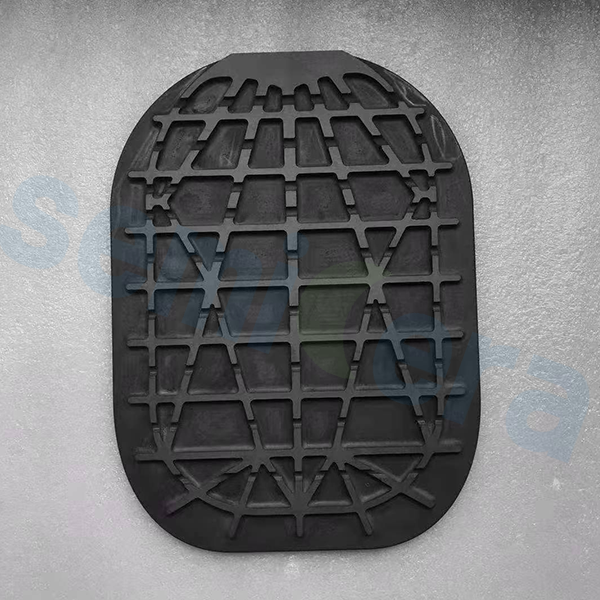

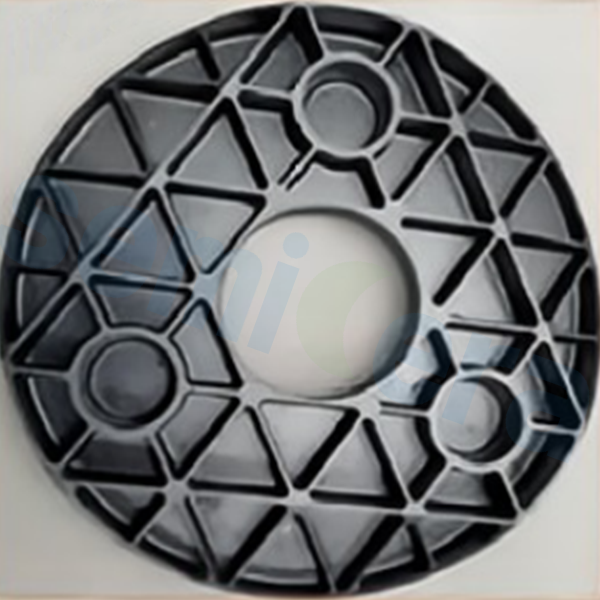

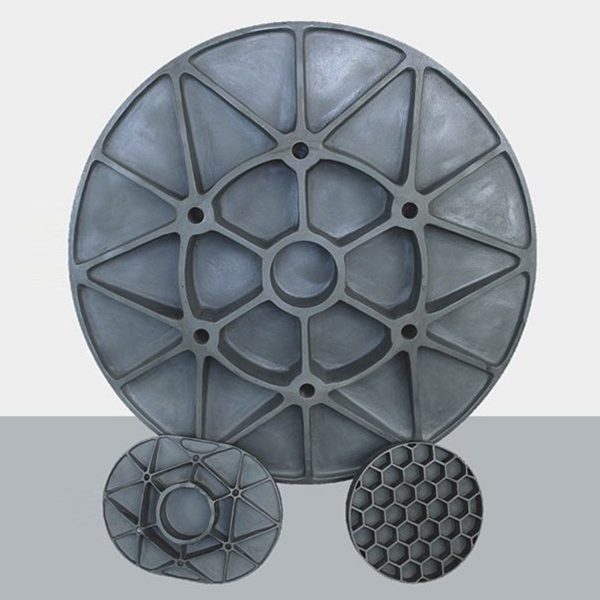

Silicon carbide mirror,SIC mirror, silicon carbide ceramic mirror, lightweight mirror SiC mirror blank body, Wei Tai Energy Technology silicon carbide mirror,SIC mirror, SiC mirror, silicon carbide ceramic mirror, lightweight mirror SIC mirror blank body density ≥3.10g/cm3.

1. The surface of the large board is high and smooth
Wei Tai Energy Technology vacuum adsorption platform board size up to 1950*3950mm (beyond this size can be splicing). Has the flatness and deflection, flatness is generally controlled within 25 wires, up to 10 wires; The deflection value is less than 10 wires at 30 kg of extra force.
2. Light weight carries heavy weight
Wei Tai Energy Technology vacuum adsorption platform uses a premium aluminium honeycomb structure, all using aluminium alloy material, with a density of around 25-35kg per square metre. Load-bearing 30kg without deformation.
3. Large suction uniform suction
The optimized design of Wei Tai Energy Technology vacuum adsorption platform can not only ensure the performance of the platform is not affected, but also make the suction of any position of the platform large and uniform.
4. Abrasion resistance
Wei Tai Energy Technology vacuum adsorption platform surface has a variety of treatment processes, including fluorocarbon PVDF dusting, positive oxidation and hard oxidation, which are selected according to the actual needs. The hard oxidation process is scrape and wear resistant, and its surface hardness can reach HV500-700.
5. Customer customization
Wei Tai Energy Technology vacuum adsorption platform can be customized according to customer requirements, whether it is platform size, aperture and distance, suction area, suction diameter, number of suction ports, interface mode or any partition, with or without suction.

Technical Parameters

碳化硅参数
Figure-N6-HERSCHEL-Primary-Reflector-design-segments-with-or-without-I-F_Q640(1)
